Earthing Protection
Rod Clamps and U-Bolt Clamps

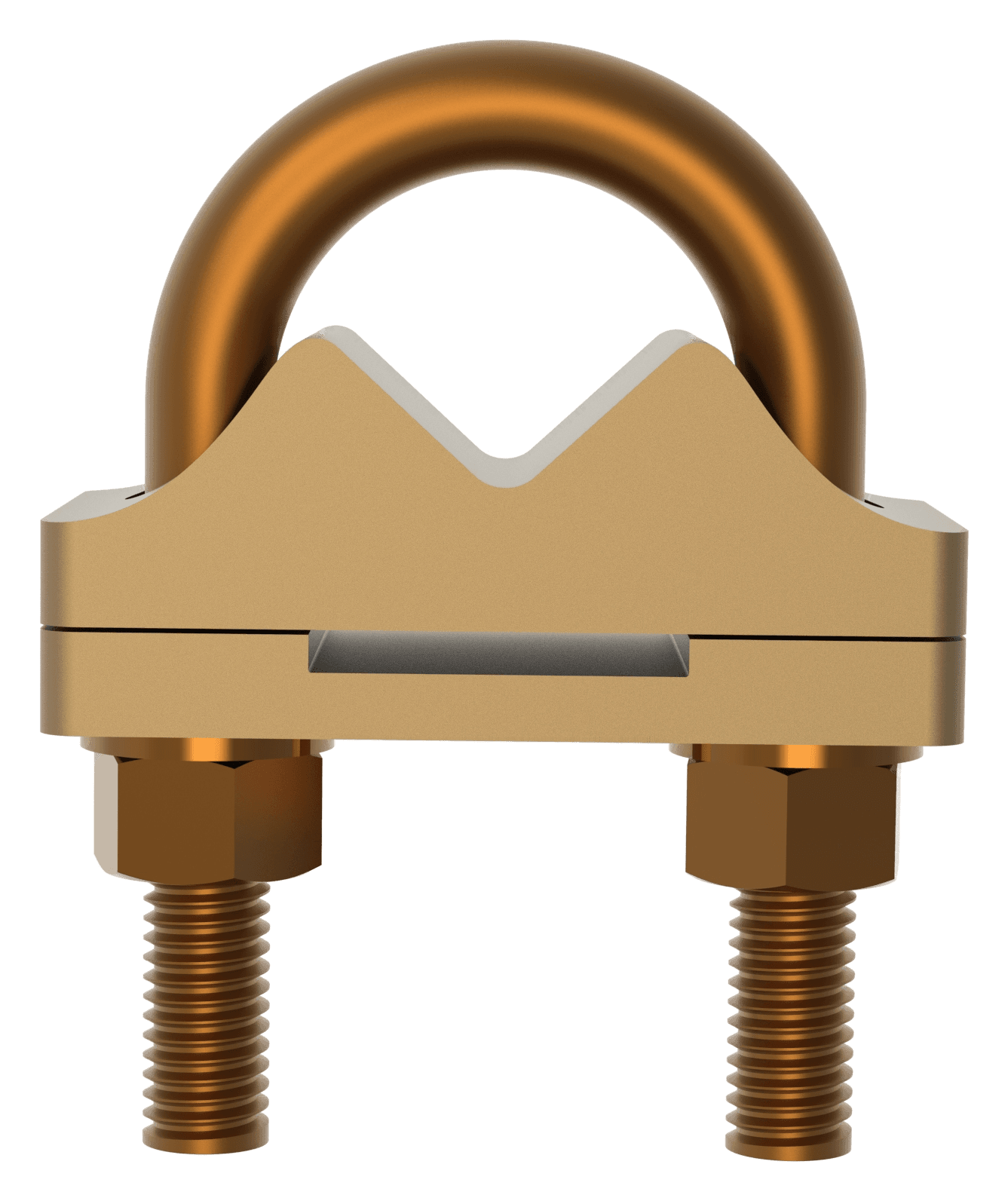

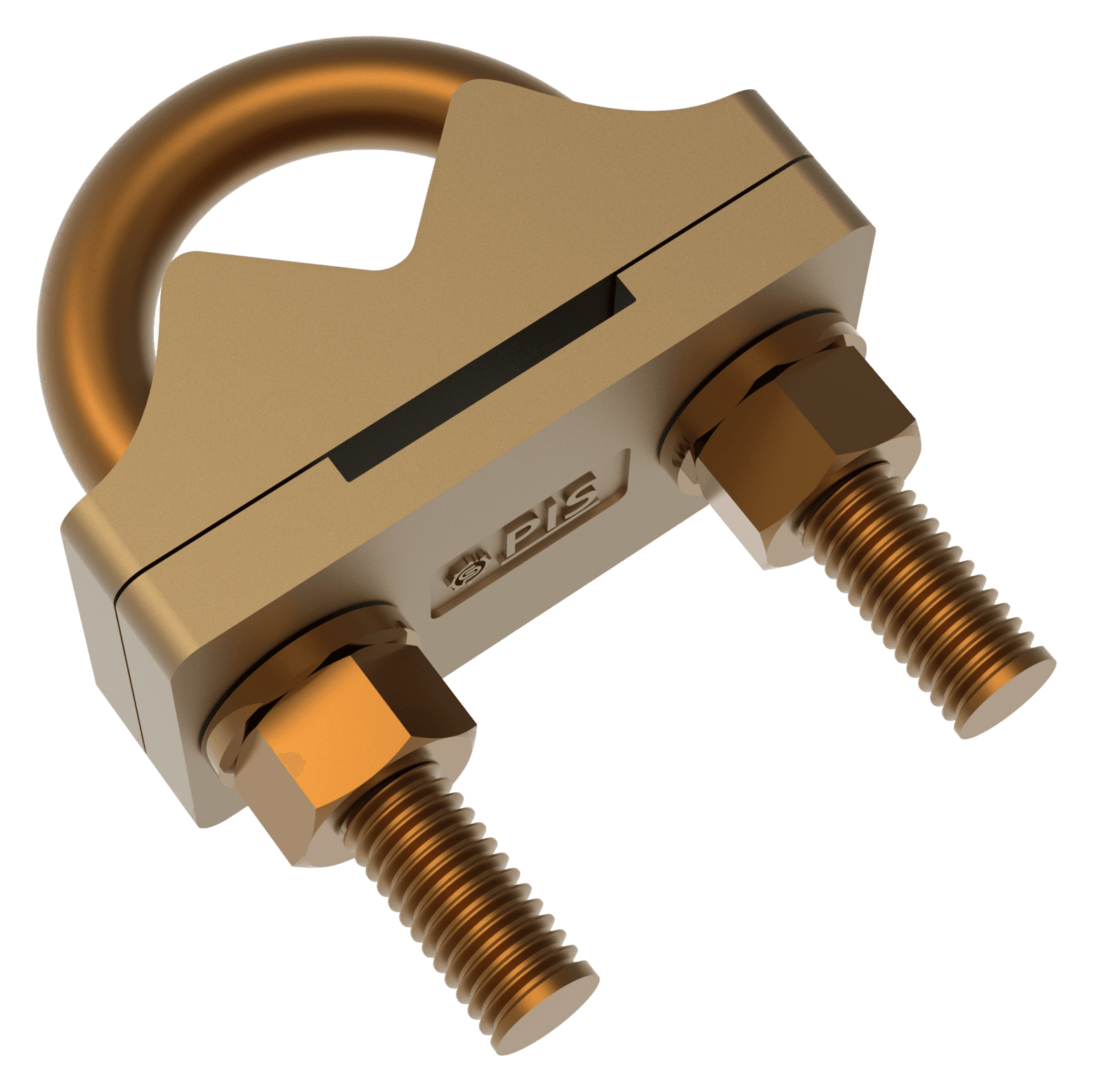

Rod-to-cable clamps connect down-conductor cable to earth rods, while U-bolt clamps connect horizontal tape or vertical stranded cable to earth rods.
Shared Specifications
- Catalog source
- New PIS Catalog 03, pages 25-26
Available Variants
Select a Variant
Selected: PISCG-03 / PISCGA-03
Rod-to-cable clamp, 5/8 in. rod, 16-70 mm2 conductor
Rod size: 5/8 in; Conductor range: 16-70 mm2
PISCG-03 / PISCGA-03
Rod size: 5/8 in; Conductor range: 16-70 mm2
PISUC-03 / PISUCA-03
Rod size: 3/4 in; Conductor range: 70-185 mm2
